IONBOARD S24, FULL SPECTRUM LED GROW LIGHT 200W, SAMSUNG LM301B, 2X4 FT. COVERAGE

IONBOARD S24, FULL SPECTRUM LED GROW LIGHT 200W, SAMSUNG LM301B, 2X4 FT. COVERAGE

AC Infinity

Regular price $249.00 USD
Regular price Sale price $249.00 USD
Sale Sold out
  • Dimmable LED grow light designed with an optimized spectrum and diode positioning, to maximize plant yields.
  • Specially formulated full-spectrum Samsung LM301B LEDs to achieve the highest growth rates in all plant stages.

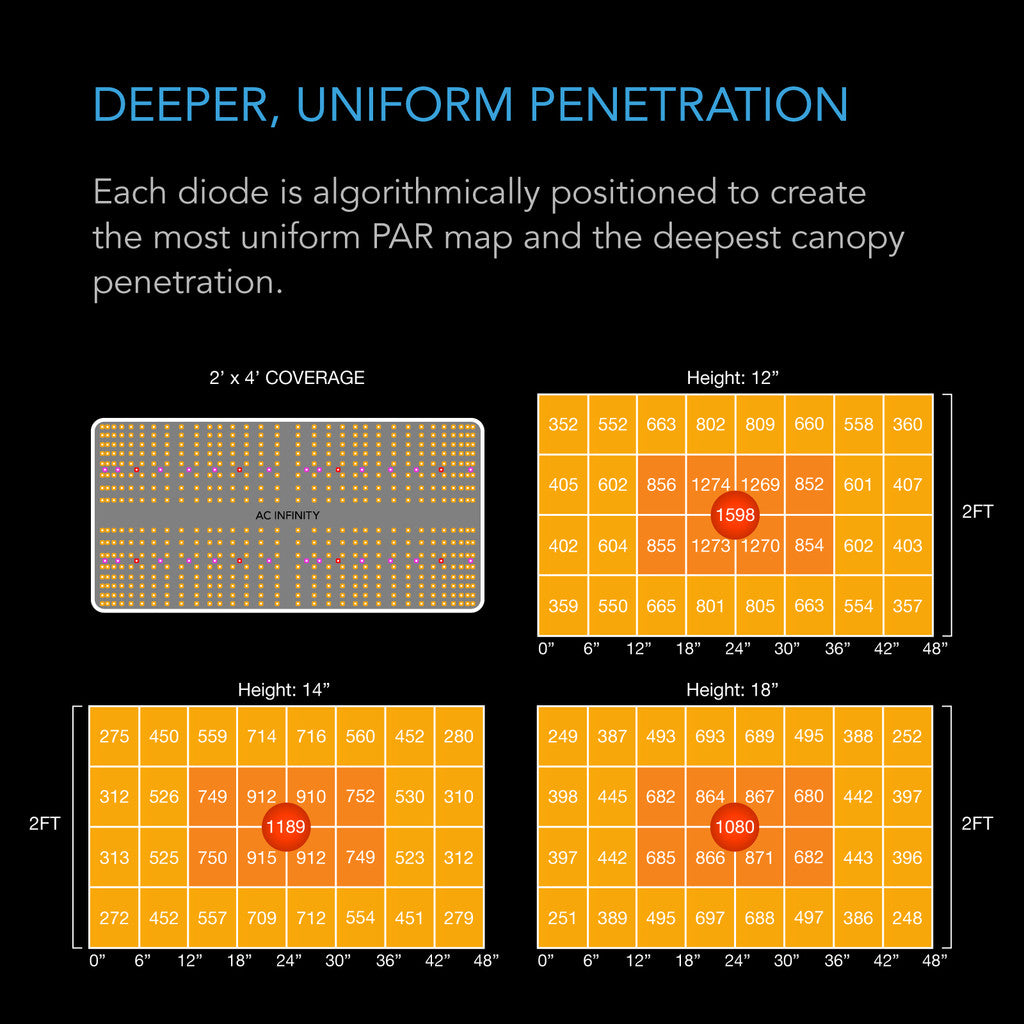

  • Algorithmically positioned diodes create the most uniform PAR map and the deepest canopy penetration.
  • Dimmer enables 0 to 100% brightness. Can connect with our smart controllers to access grow cycles, scheduling, and app.

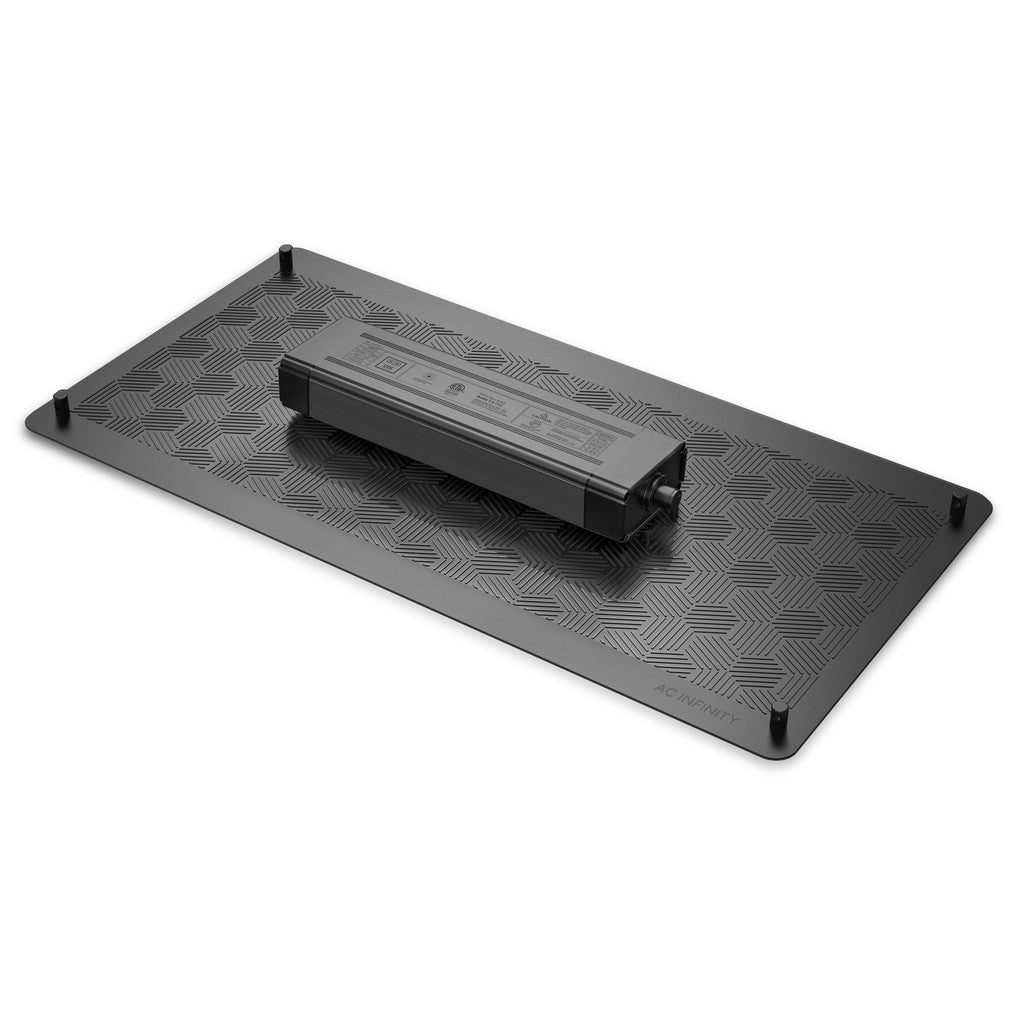

  • Constructed on a unibody aluminum board and IP-65 rated for grow environments with higher humidity and heat.

PRODUCT DESCRIPTION

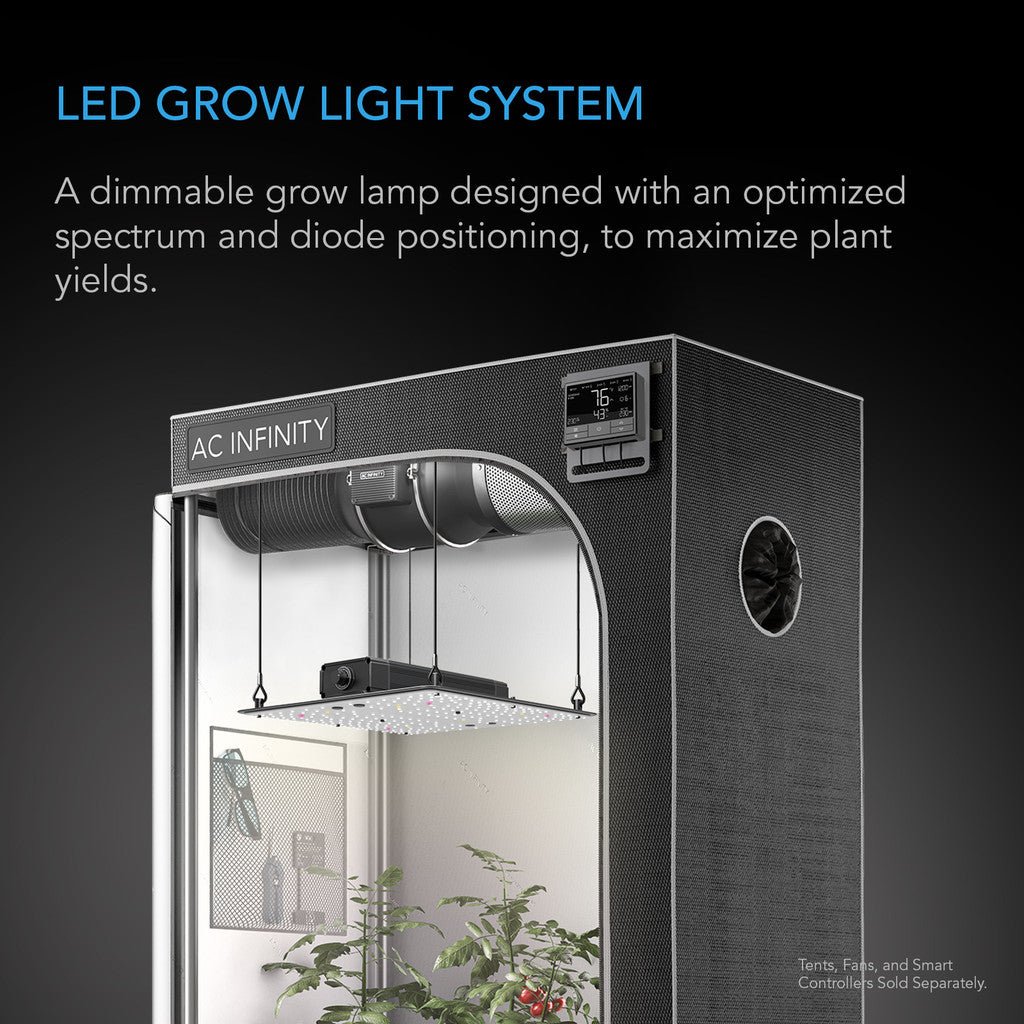

A full spectrum LED grow light designed with algorithmically positioned Samsung LM301B diodes to maximize plant yields. Features a proprietary driver that enables light dimming and can connect with our smart controllers. These enable pairing with additional LED light fixtures when using expansion dongles (sold separately). Built on a fanless, unibody aluminum board to dissipate heat and extend the diodes’ lifetime. All components are sealed to IP-65 standards to maintain peak performance even in a grow environment with higher temperatures and humidity. Includes a pair of metal bar hangers and rope hangers. This LED grow fixture is designed for grow tents with interior reflective Mylar lining, and used to cultivate a variety of plants, fruits, and vegetables. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

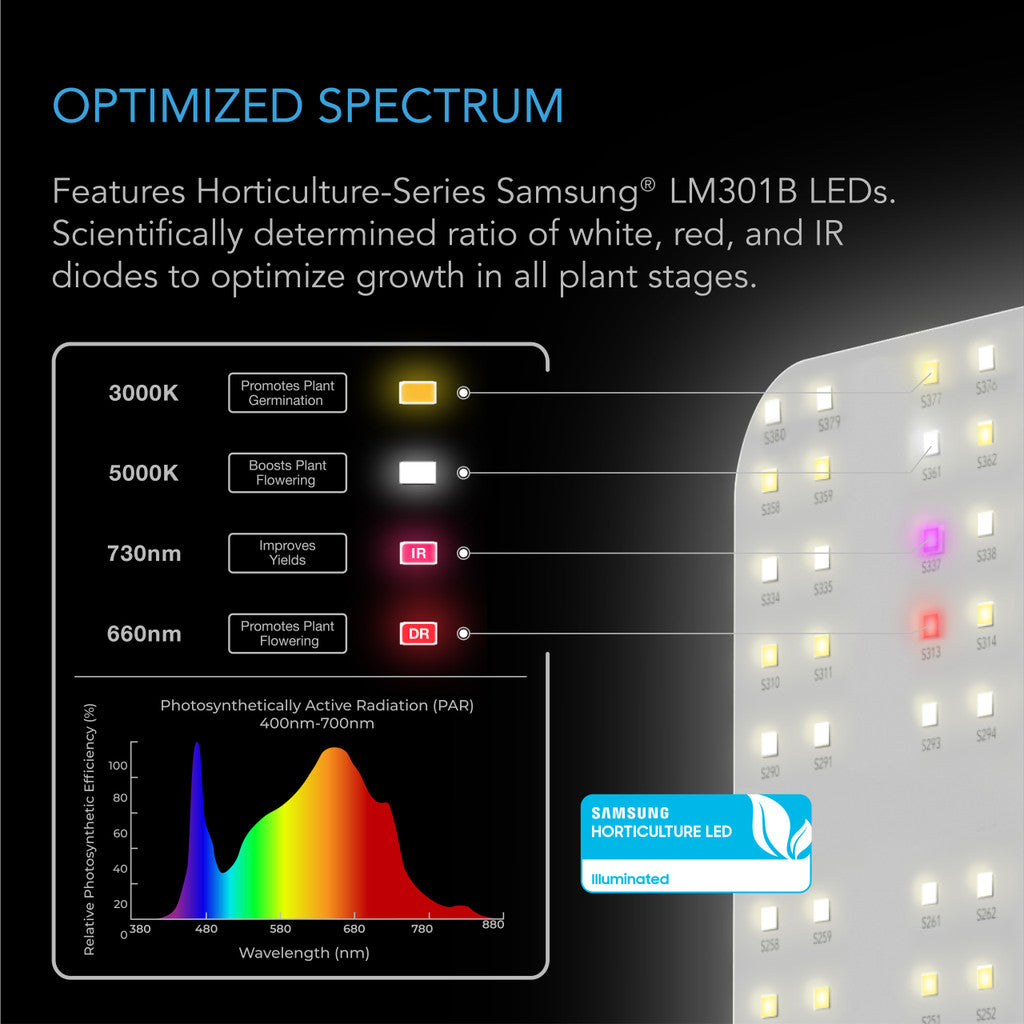

OPTIMIZED SPECTRUM

Each light contains an optimized ratio of Horticulture-Series Samsung LM301B white, red, and IR LEDs designed to maximize plant yields. The diodes are then algorithmically positioned within the board to provide the most uniform PAR map coverage and deepest light penetration. These features help achieve the highest growth rates in germination, vegetative, and flowering stages.

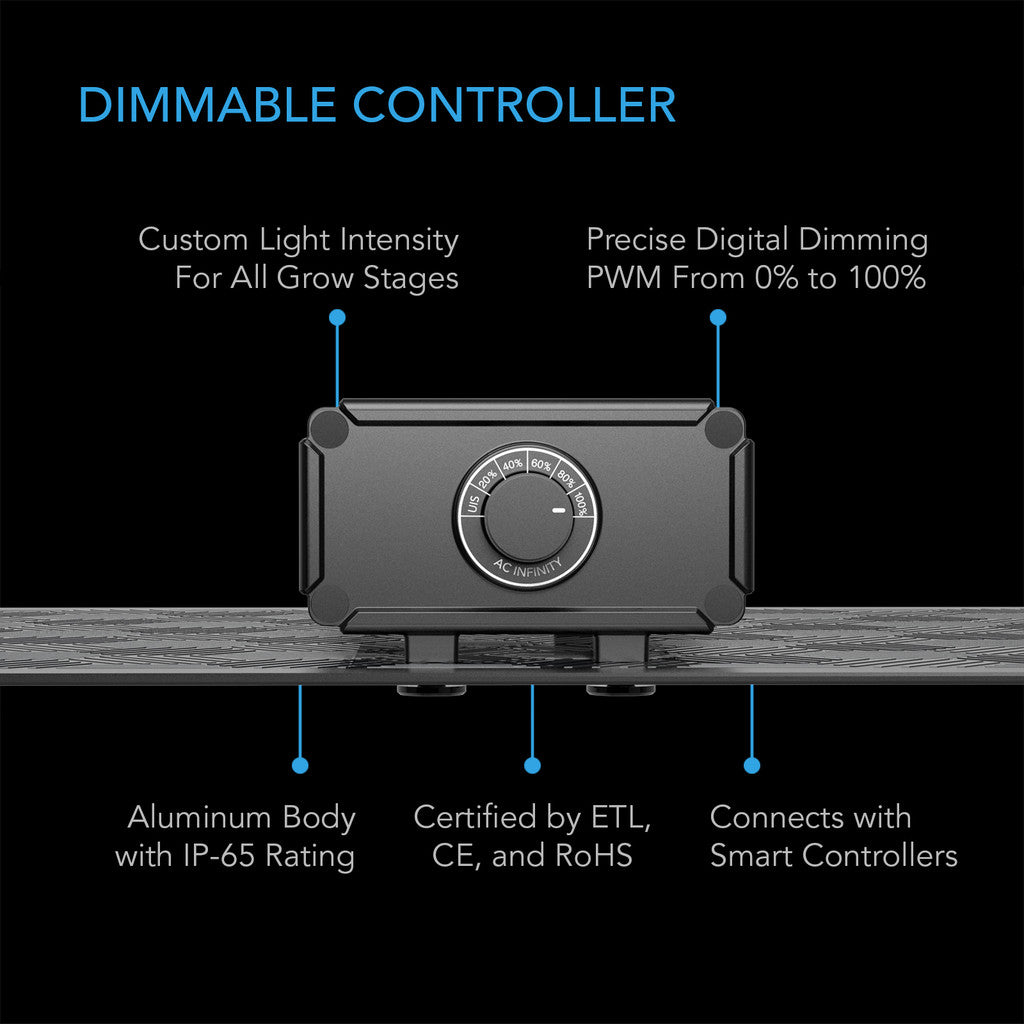

FUTURE READY CONTROLS

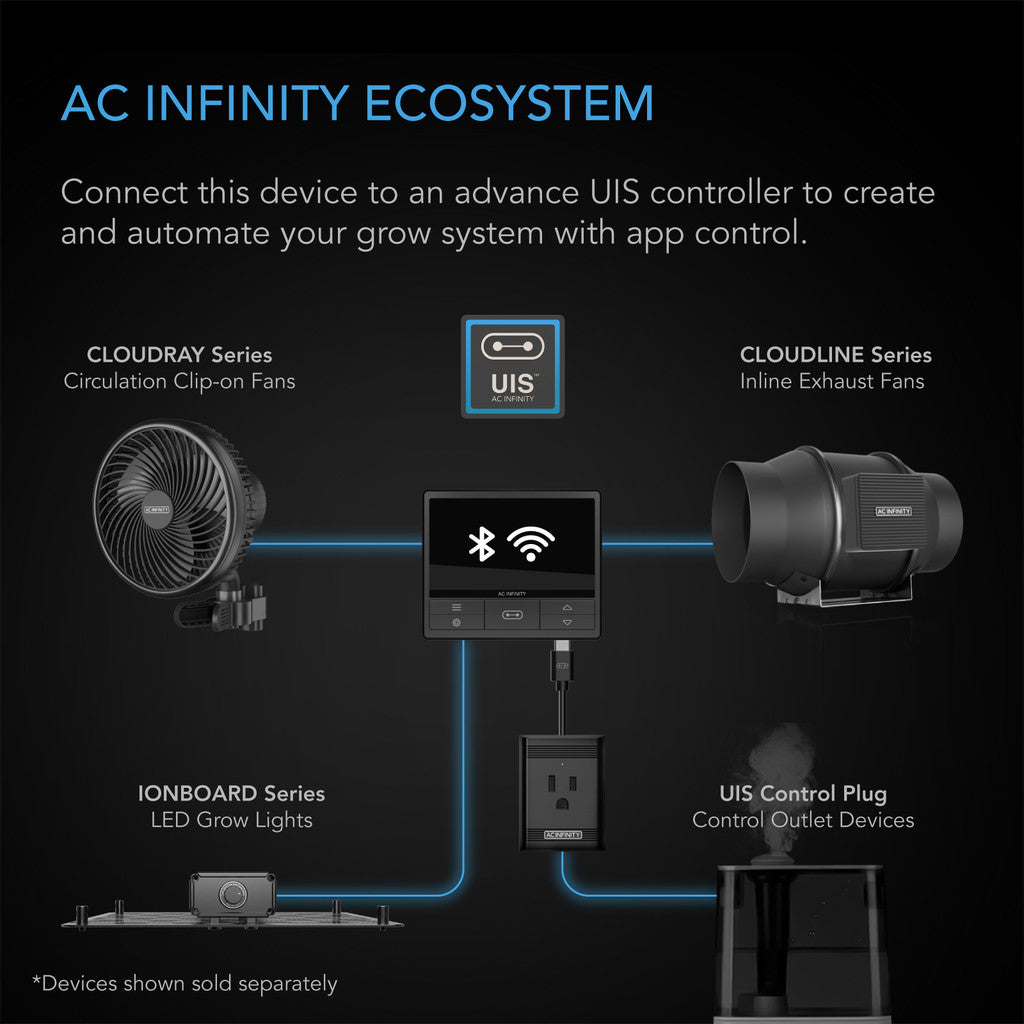

Features a proprietary LED driver that enables 0-100% dimming with an easy-to-use control knob that adjusts light intensity in 20% increments. The driver also contains a port that enables daisy chaining and can connect with our smart controllers to access grow cycles, scheduling, app control, and more. Join our ecosystem of controllers and grow equipment including fans and lights, all working together to achieve the optimal environment



 Product Identification
   Manufacturer    AC Infinity Inc.
   Product Name    IONBOARD S24
   Product Model    AC-IBS24
   UPC Code    819137022522

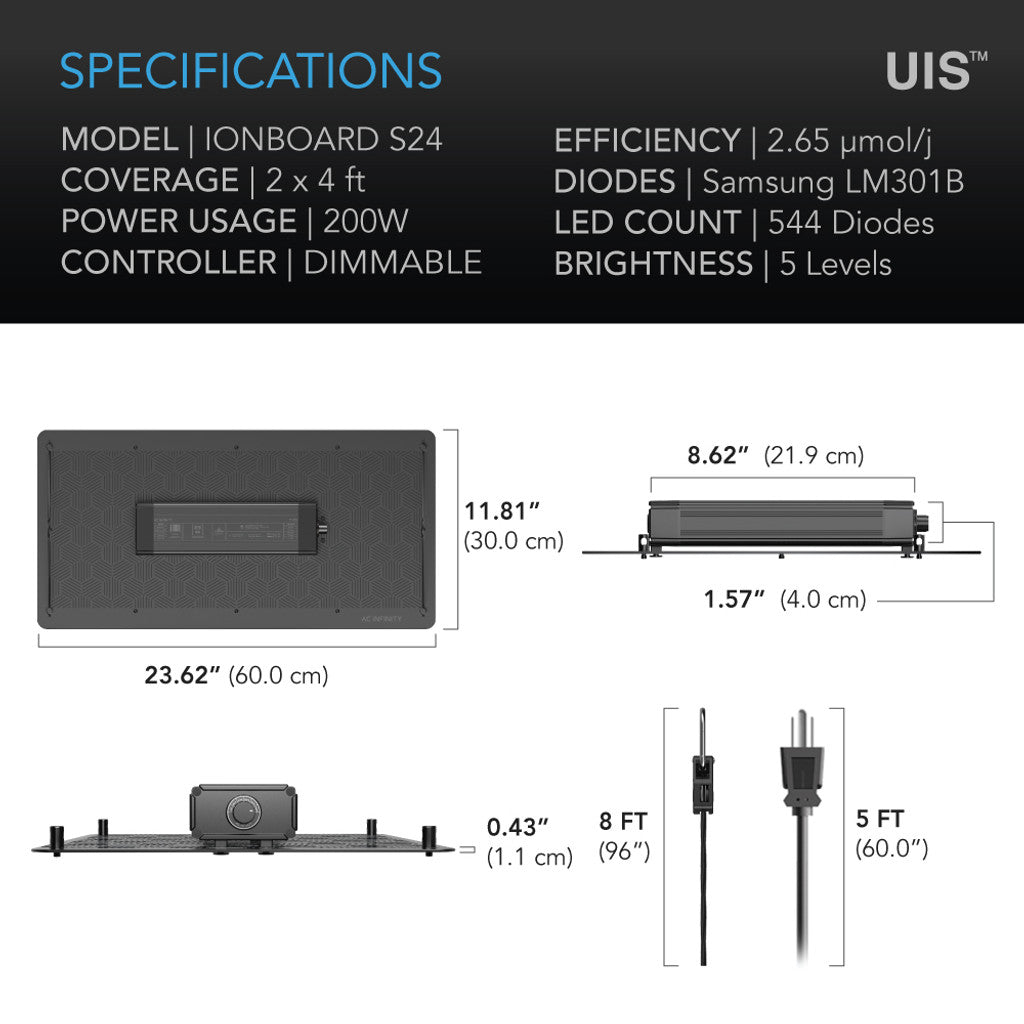

   Product and Mounting Dimensions
   Light Dimensions    11.81 x 23.62 in. (30.0 x 60.0 cm)
   LED Board Thickness    0.43 in. (1.1 cm)
   Driver Dimensions    8.62 x 1.57 in. (21.9 x 4.0 cm)
   Product Performance and Technical Specs
   Coverage    2 x 4 ft.
   Diodes    Samsung LM301B
   LED Chip Count    544
   LED Driver    AC Infinity Proprietary Driver, Model GTS-100
   Efficiency    2.65 µmol/j
   PPFD    1598 PPFD
   Spectrum    660nm, 730nm, 3000K, 5000K
   Wattage    200 W
   Voltage    100-277V AC
   Frequency    50/60 Hz
   Amps    1.84 A @ 120V | 0.92 A @ 240V | 0.80 A @ 277V
   Controller    Digital Dimming Timer
   Power Connector Type    US Plug (NEMA 1-15 Type-A)
   Operating Humidity    35 to 85% RH
   Operating Temperature    32 to 140°F
   Life Expectancy    50,000 Hours
