CLOUDLINE S8, QUIET INLINE DUCT FAN SYSTEM WITH SPEED CONTROLLER, 8-INCH

CLOUDLINE S8, QUIET INLINE DUCT FAN SYSTEM WITH SPEED CONTROLLER, 8-INCH

AC Infinity

Regular price $159.99 USD
Regular price Sale price $159.99 USD
Sale Sold out
  • Designed to ventilate hydroponic grow rooms, transfer heating/cooling, circulate air, cool AV closets, exhaust odors.
  • Features an 8-speed manual controller utilizing PWM. See T-Series for temperature and humidity controls.
  • Mixed flow design combined with a PWM-controlled EC motor for a truly quiet and energy efficient performance.
  • Kit also includes corded AC power plug, installation manual, and all necessary mounting hardware.
  • Duct Size: 8” | Dimensions: 8.5 x 11.9 x 9.2 in. | Airflow: 807 CFM | Noise: 39 dBA | Bearings: Dual Ball

PRODUCT DESCRIPTION

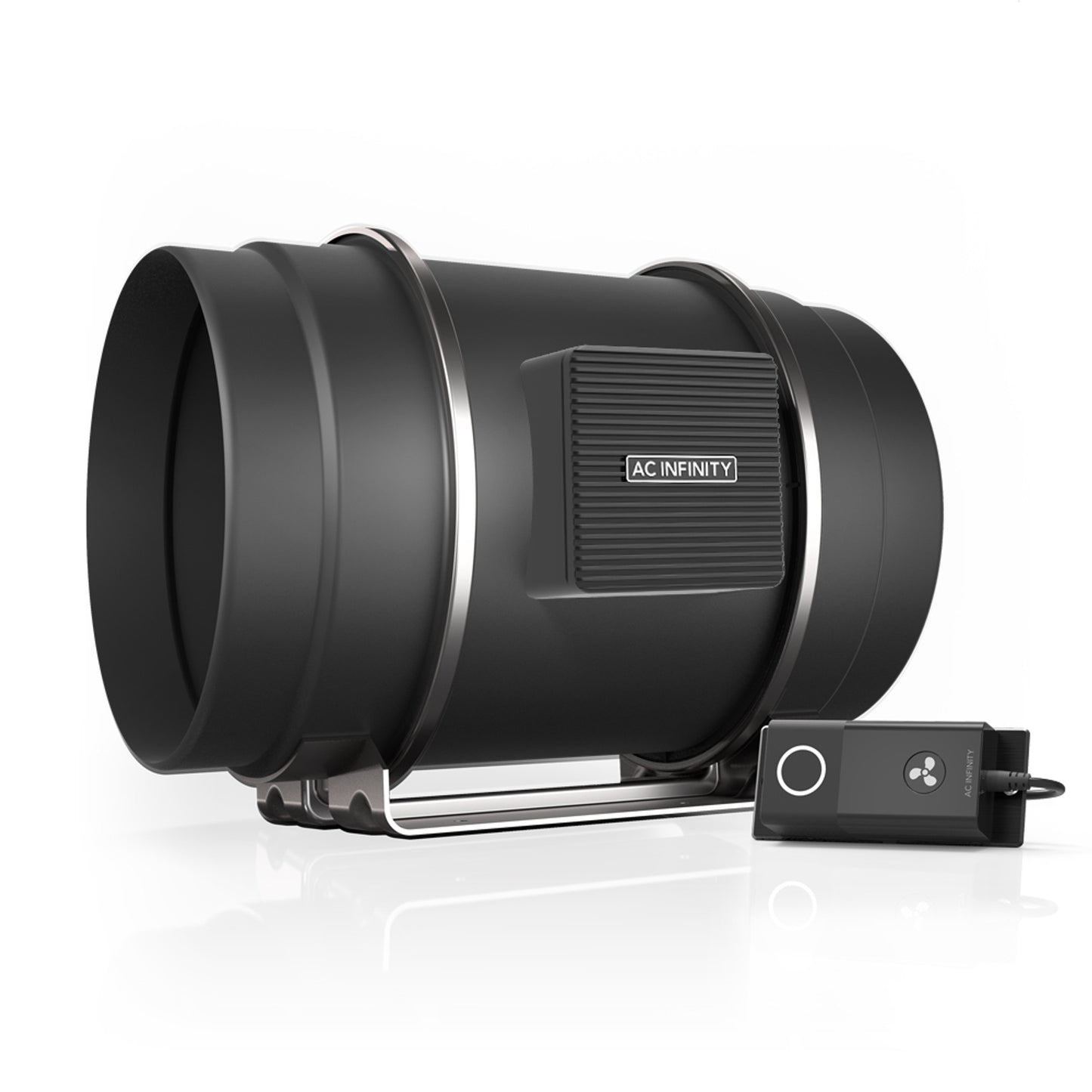

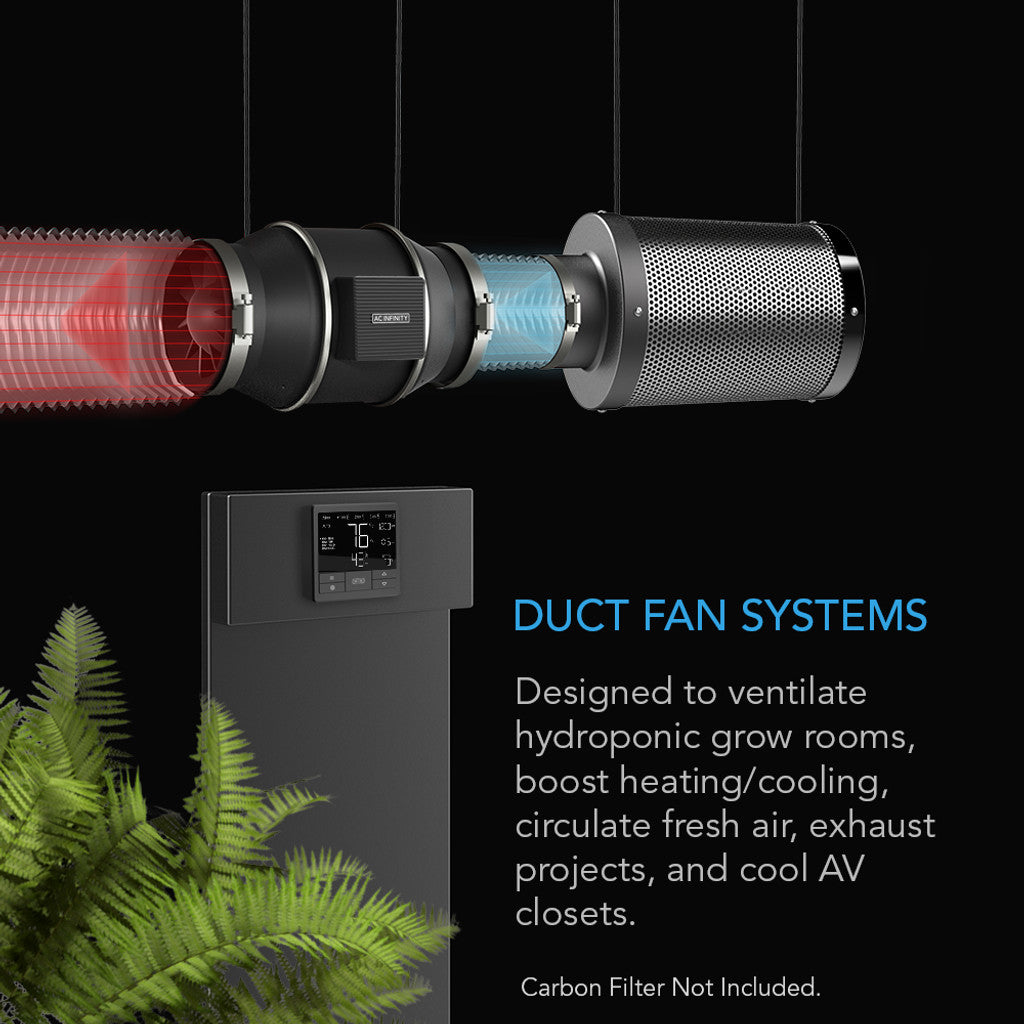

A smart inline duct fan designed to quietly ventilate hydroponic grow rooms, boost heating/cooling to rooms, circulate fresh air, exhaust projects, and cool AV closets. Features an inline speed controller utilizing PWM-technology. Contains a mixed-flow design and EC-motor for a quiet and high static-pressure performance. The motor box containing the fan’s impeller and blades can be detached from the mounted frame for easy cleaning and maintenance. Complete kit includes one duct fan unit, one corded speed controller, installation manual, and all necessary mounting hardware. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

PRECISE SPEED CONTROLLER

The inline speed controller enables you to set the duct fan’s speed to optimal noise and airflow levels for various environments. Unlike common AC-powered duct fans that suppresses voltage to control fan speeds, this duct fan features an EC-motor that is precisely controlled using PWM (Pulse Width Modulation). This technology enables the fan's motor to be able to run smoothly at extremely low RPM speeds without generating motor noises and heat as seen on variable voltage controllers. Eight speed options are available with power on/off switch. Due to its backup memory capability, the fan can be triggered to run at customizable speeds when given power. This S8 model can be connected to the smart controller of the CLOUDLINE T8 to share the same programming.

QUIET AND ENERGY EFFICIENT DESIGN

The inline fan features a mixed flow design using a stator blade and dual hydrodynamic wind circles. This gives it a high static pressure rating, enabling it to deliver airflow even in applications where air movement is being restricted. The motor houses dual ball bearings rated at 67,000 hours which allows the duct fan unit to be mounted in any direction. The unit is IP44 rated to be highly resistant to dust and liquids, and performs well even in harsh environments.

APPLICATIONS

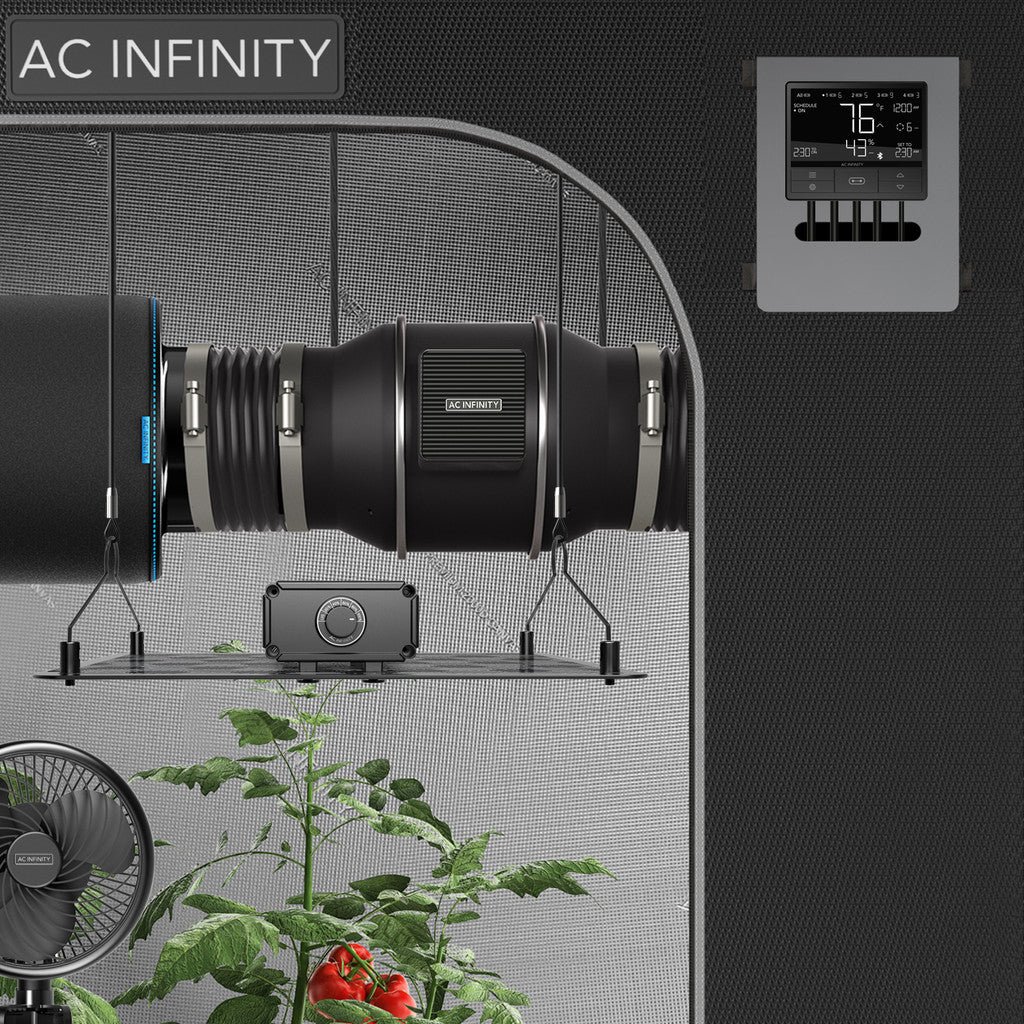

This quiet duct fan system is popular in a variety of applications including cooling AV equipment rooms, closets, racks, and cabinets. Due to its low noise and advanced control features, it’s also used in various air circulation and ventilation projects including hydroponic grow rooms and tents, exhausting bathrooms and attics, and other installations.



   Product Identification
   Manufacturer    AC Infinity Inc.
   Product Name    CLOUDLINE S8
   Product Model    AI-CLS8
   UPC Code    819137020849

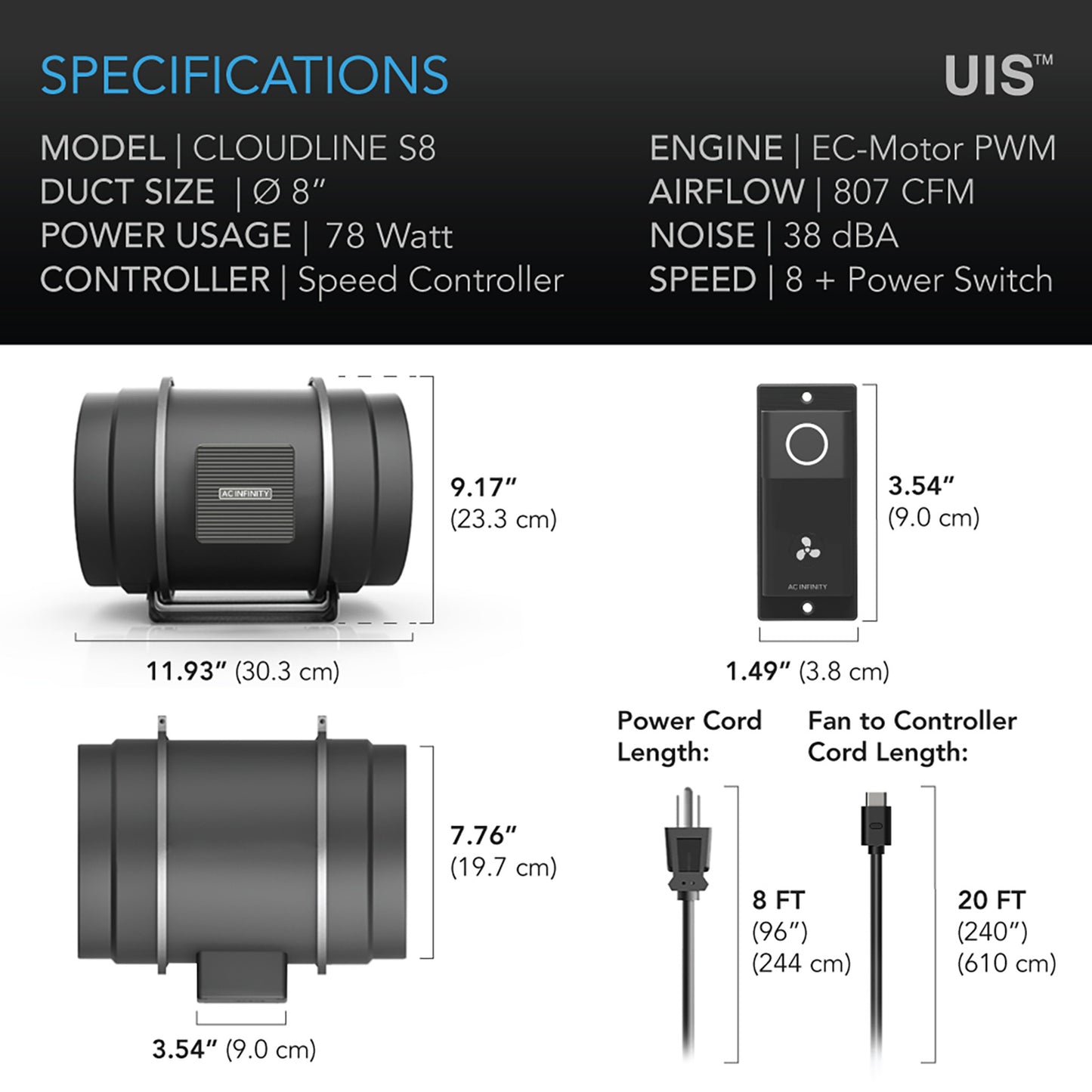

   Product and Mounting Dimensions - Fan Unit
   Duct Size    8"
   Total Dimensions    8.54 x 11.89 x 9.17 in. (21.7 x 30.2 x 12.3 cm)
   Mounting Hole-To-Hole Distance    3.94 x 3.70 in. (10.0 x 9.4 cm)
   Screw Hole Size    Ø 0.217 in. (Ø 0.55 cm)
   Cord Length to Controller    240 in. (20 feet)
   Cord Length to Plug    96 in. (8 feet)
   Product and Mounting Dimensions - Controller
   Total Dimensions    3.34 x 2.95 x 0.51 in. (8.5 x 3.6 x 1.3 cm)
   Required Mounting Area    2.95 x 0.51 in. (3.6 x 1.3 cm)
   Hole to Hole Distance    2.87 in. (7.3 cm)
   Screw Hole Size    Ø 0.157 in. (Ø 0.4 cm)
   Product Performance and Technical Specs
   Total Airflow    807 CFM
   Total Noise    39 dBA
   Static Pressure    746 Pa
   Voltage    100-240V AC
   Frequency    50/60Hz
   Max Power Draw    110 W
   Average Power Usage    78 W
   Current    2.27 A
   Power Connector Type    US Plug (NEMA 1-15 Type-A)
   Operating Humidity    35 to 85% RH
   Operating Temperature    32 to 140°F
   Ingress Protection    IP 44
   Fan Bearings    Dual Ball
   Mounting Positions    Horizontal or Vertical
   L10 Life Expectancy    67,000 Hours
