AIR FILTRATION KIT 6”, INLINE FAN WITH SPEED CONTROLLER, CARBON FILTER & DUCTING COMBO
AIR FILTRATION KIT 6”, INLINE FAN WITH SPEED CONTROLLER, CARBON FILTER & DUCTING COMBO

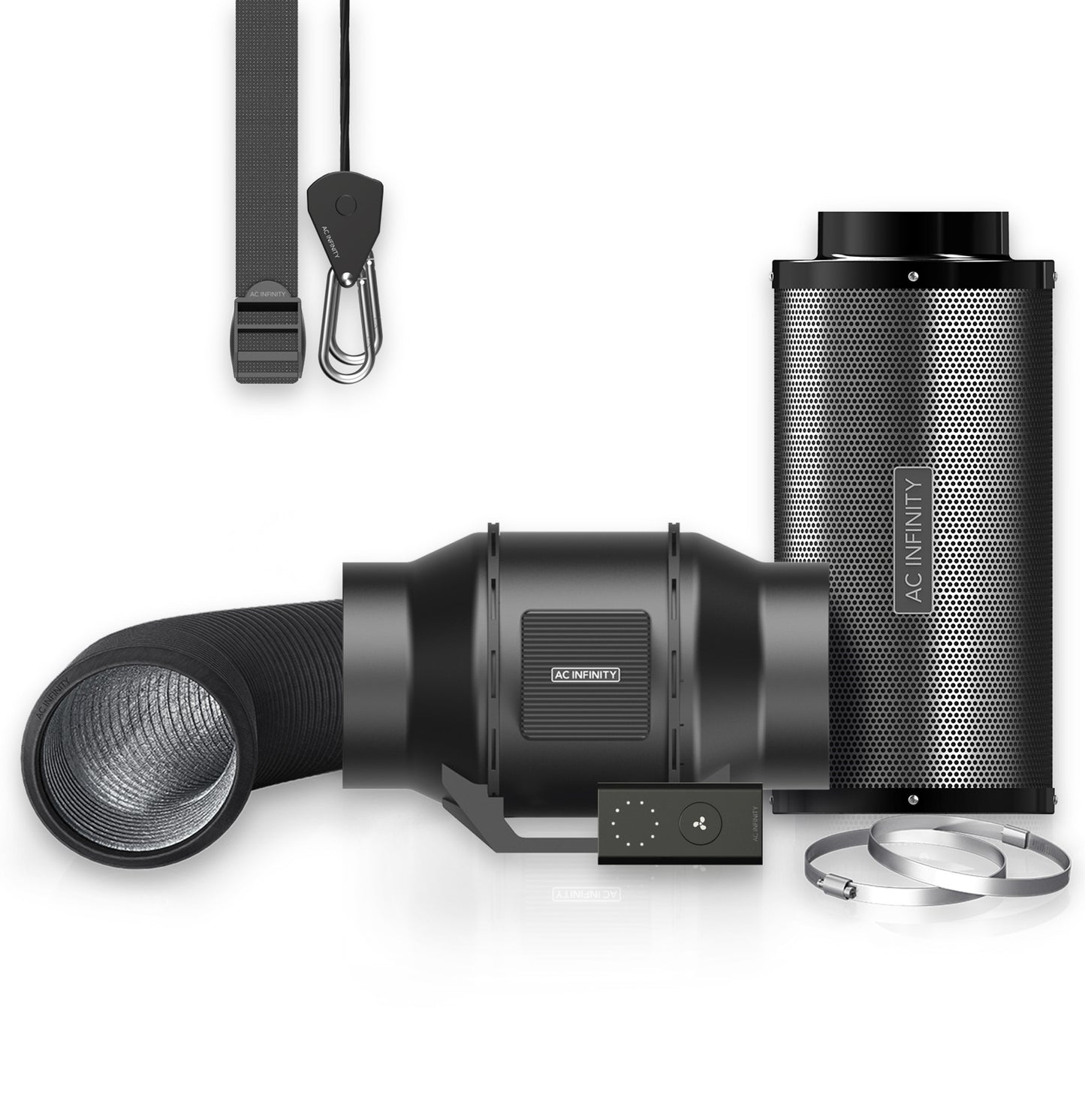

- An air filtration kit with everything you need to cool, ventilate, and control odors in your grow space.
- Features the CLOUDLINE LITE inline fan with speed controller, delivering silent and efficient performance.
- Carbon filter with prefilter cloth uses 1200+ IAV activated charcoal for high efficacy odor blocking.
- Four-layer flexible ducting connects the inline fan and filter to your grow tent to direct airflow.
- Kit Duct Size: 6” | Fan Airflow: 352 CFM | Noise 34 dBA | Carbon Thickness: 38 mm | Ducting Length: 25 ft.
PRODUCT DESCRIPTION

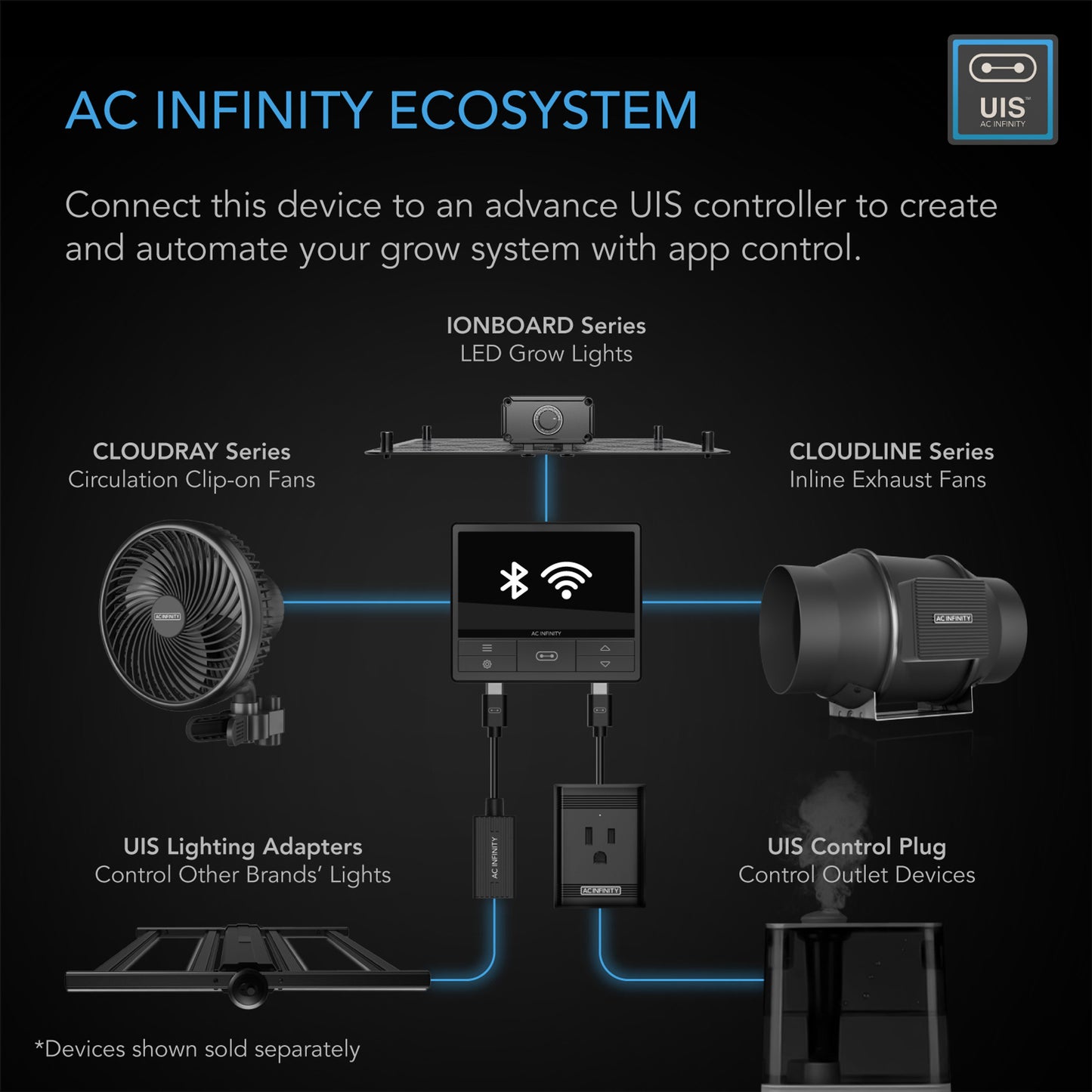

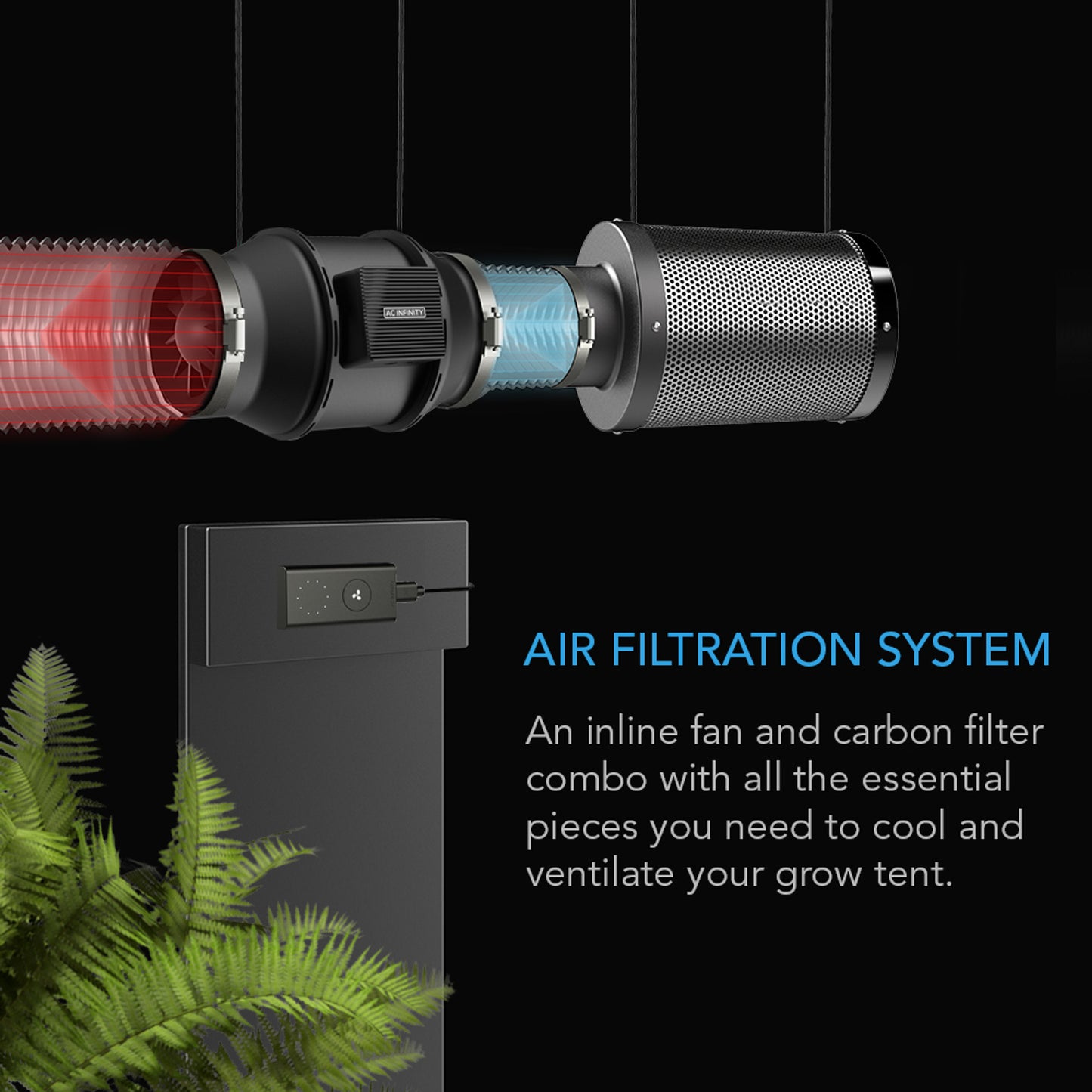

A grow tent air filtration system with all the necessary inline components you need to ventilate your grow space. By assembling these essential pieces, this package will help you quickly get your grow build started and eliminate the guesswork of purchasing them individually. This inline fan kit features the CLOUDLINE LITE Series fan with 10-speed controller, capable of delivering powerful yet quieter performance. Paired with a carbon filter using Australian virgin charcoal to block odors from seeping out of your grow tent. These two pieces are connected by a set of flexible ducting with four layers of protection to properly direct airflow away. Accessories include duct clamps, prefilter cloth, rope clip hangers, and hanging straps to complete the installation. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.
INLINE FAN

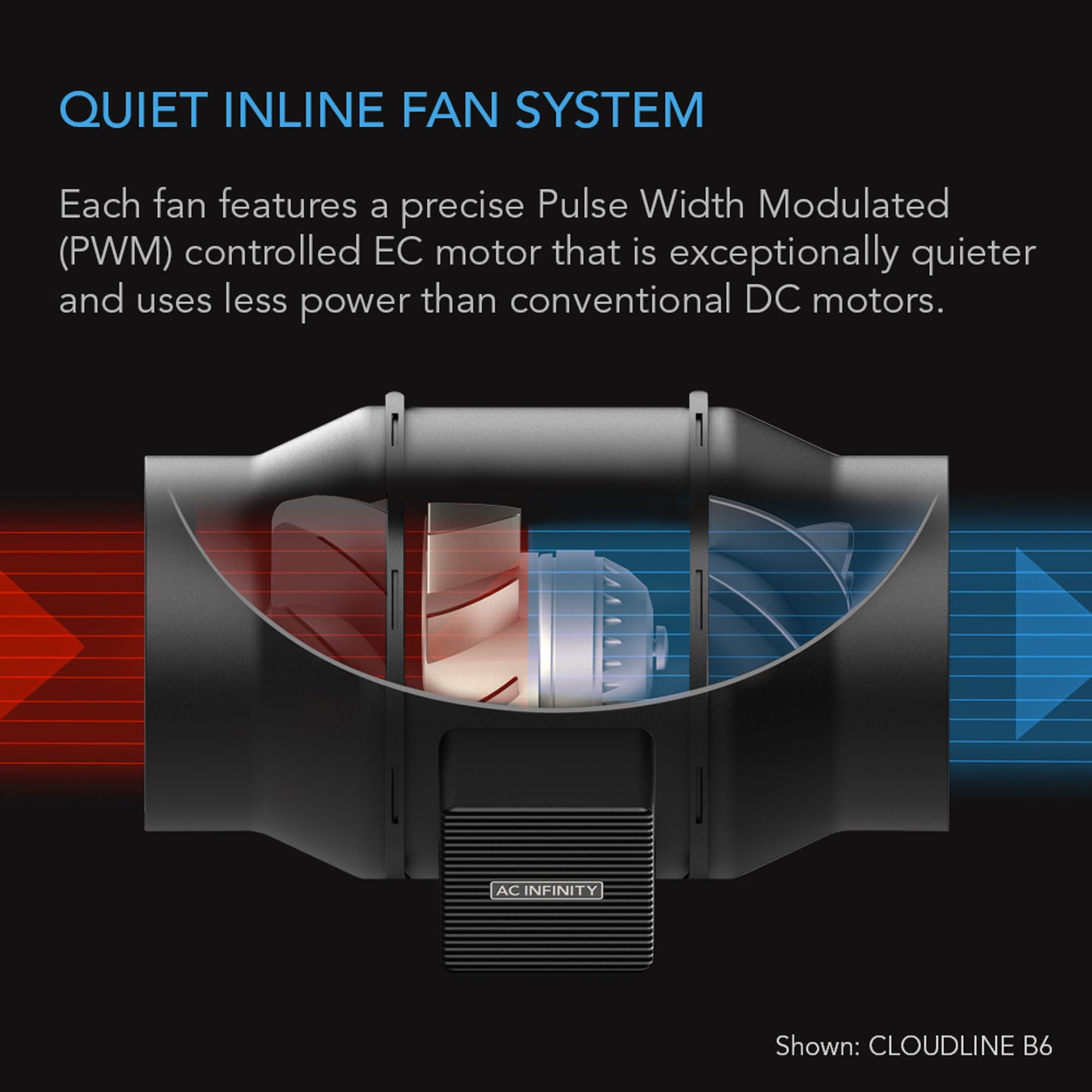

The grow tent ventilation kit is headlined by the CLOUDLINE LITE Series of inline duct fans, featuring a 10-speed fan controller. Using stator blades and dual hydrodynamic wind circles, the CLOUDLINE LITE achieves high-performance airflow in most restrictive applications thanks to its mixed-flow design. The motor box containing the fan’s impeller and blades can be detached from the mounted frame for easy cleaning and maintenance. This frame is crafted with a plastic mounting base to diminish noise due to fan vibration and can be mounted in any direction. Dual ball bearings give this inline fan a 67,000-hour lifespan which is backed by its IP-44 rating, resisting dust and splashing liquids.

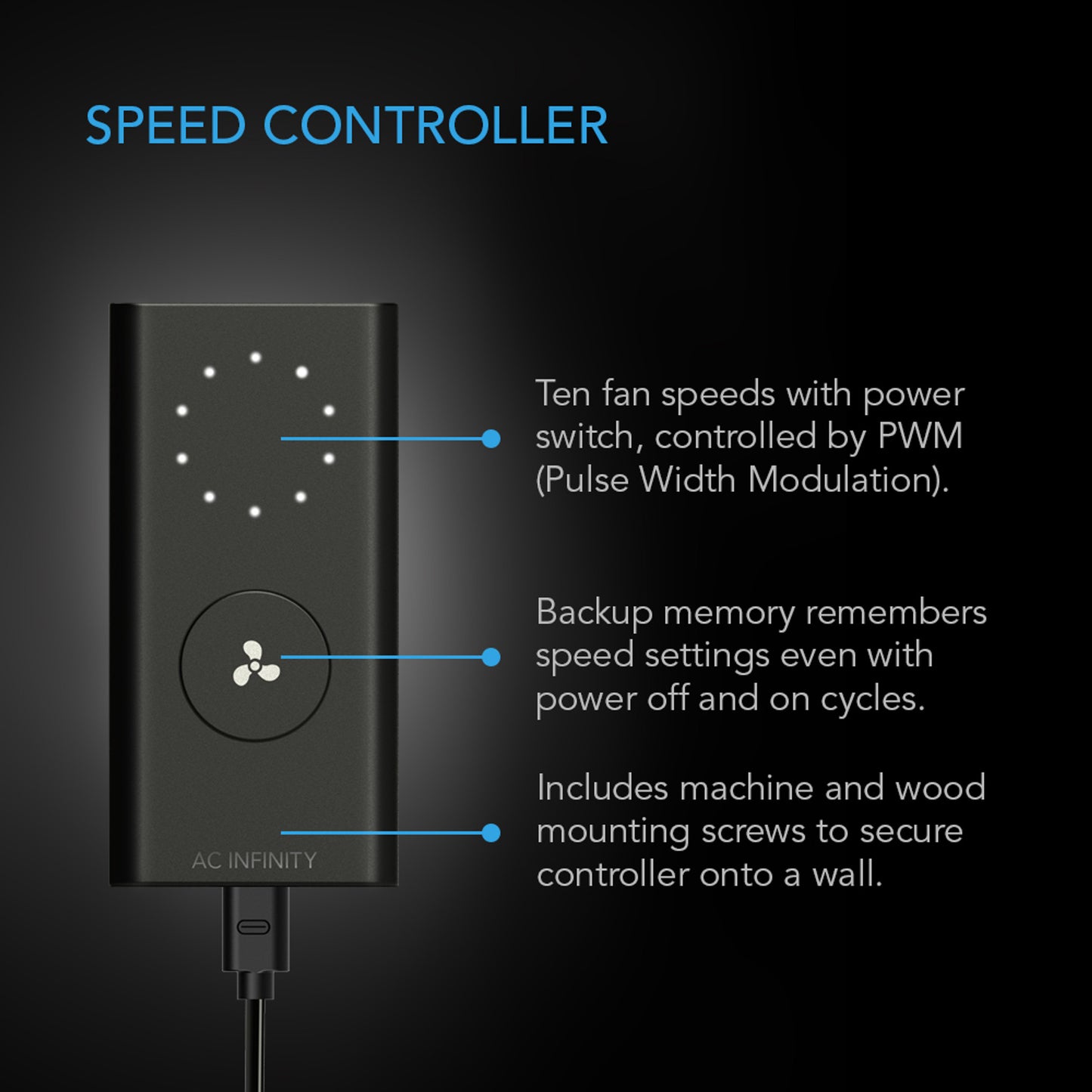

A 10-speed fan controller is paired with this inline fan to optimize airflow levels and noise in many applications. The fan’s PWM controls enable it to smoothly set fan speeds and operate at extremely low RPMs with no motor noise. Along with this wired speed controller, the CLOUDLINE LITE is also compatible with the following controllers:
- B-Series Temperature Controller
- CONTROLLER UNC529
- CONTROLLER 69
- CONTROLLER 67
- CONTROLLER 63
CARBON FILTER

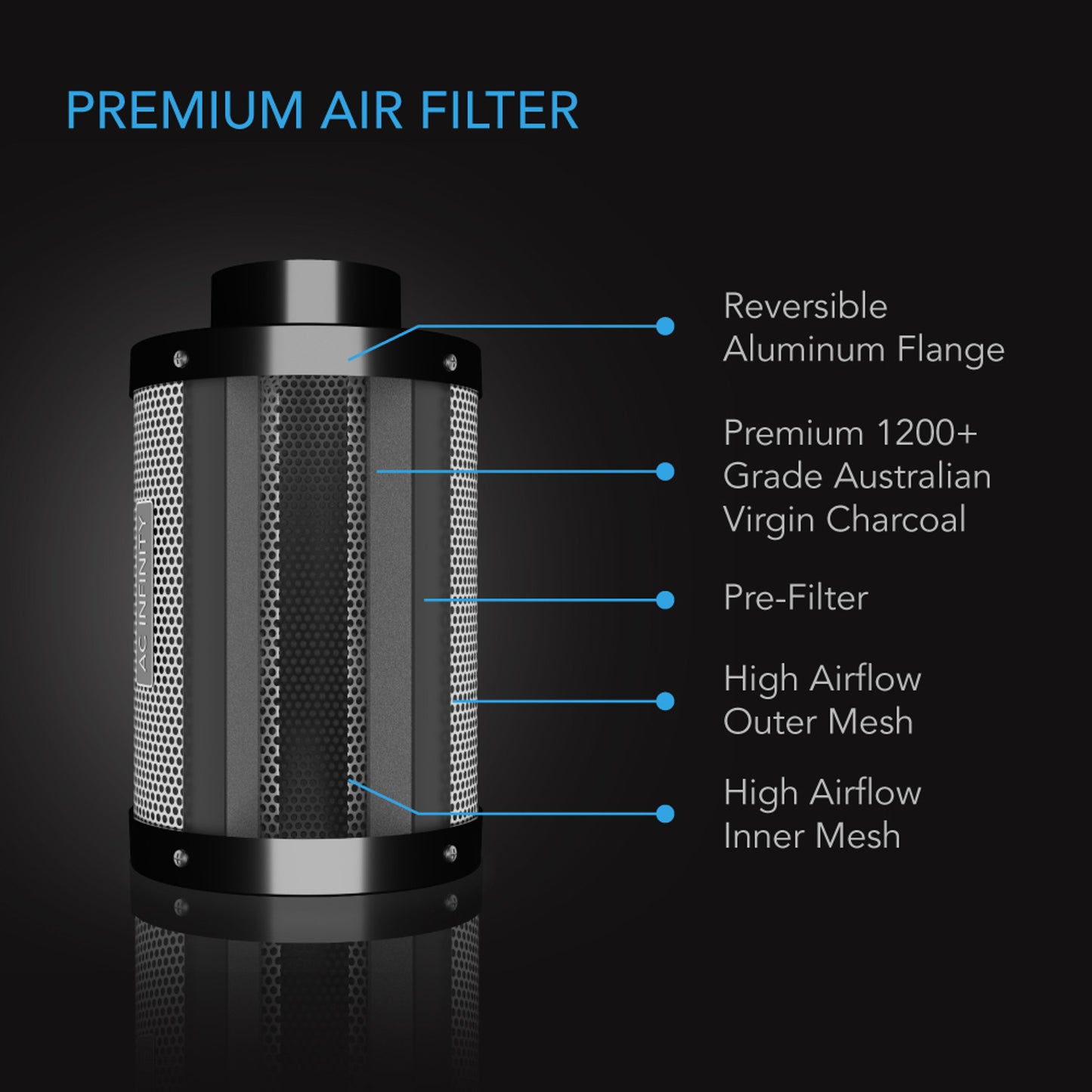

Pair the CLOUDLINE LITE inline fan with a carbon filter to effectively block odors from seeping out of your grow tent. Its 38mm thick carbon bed is made up of premium Australian activated charcoal with a 1200+ IAV rating and RC412 microporosity. This enables the carbon filter to adsorb the most odor molecules for up to 33% longer than other inline filters. Use with the included prefilter and reversible flanges (to flip the carbon bed) can further extend its lifespan. The heavy-duty build consists of aluminum flanges and a galvanized steel mesh to allow 100% air passthrough.
DUCTING
Install flexible ducting to connect your inline fan and carbon filter with your grow tent and route stale and odorous air away. Each included set features four layers of protection that resist tears and leaks, bound by internal steel wires to retain its shape. The outer layers are composed of dual PVC thermoplastic to protect the inner layers from cuts and tears and prevent air leakage. These inner layers are made up of flame-resistant aluminum to protect against wear and tear due to warmer airflow. 25 feet of ducting gives you the flexibility to customize the length of your ductwork to fit your application.
Product Identification | |
Manufacturer | AC Infinity Inc. |
Product Name | Air Filtration Kit 6" |
Product Model | AC-FKS6 |
UPC Code | 819137021891 |
Product Manual | |

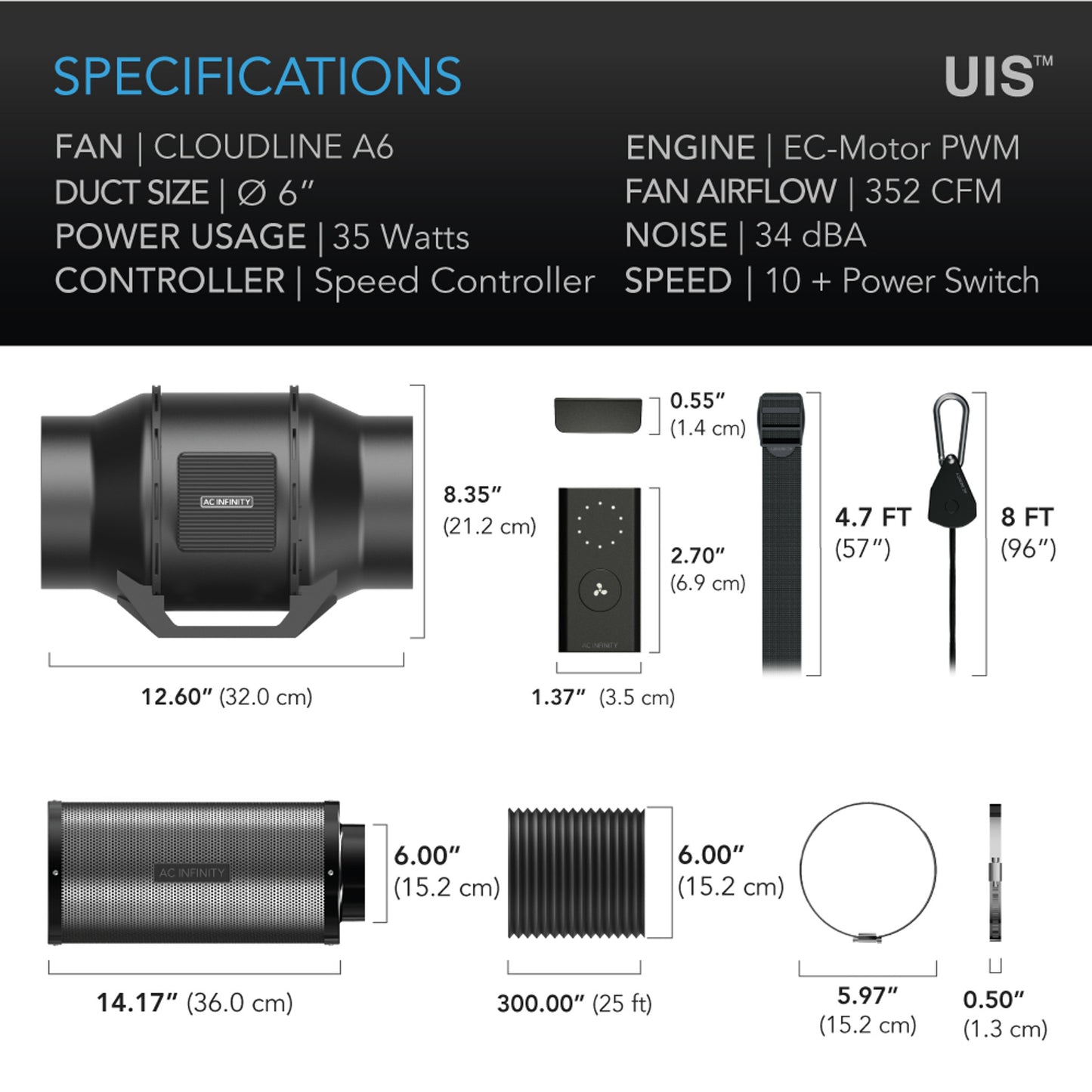

Product and Mounting Dimensions - Fan Unit | |
Duct Size | 6" |
Total Dimensions | 7.87 x 12.60 x 8.35 in. (21.2 x 32.0 x 20.0 cm) |
Mounting Hole-To-Hole Distance | 3.15 x 2.36 in. (8.0 x 6.0 cm) |
Screw Hole Size | Ø 0.236 in. (Ø 0.6 cm) |
Cord Length to Controller | 72 in. (6 feet) |
Cord Length to Plug | 72 in. (6 feet) |
Product and Mounting Dimensions - Controller | |
Total Dimensions | 2.70 x 1.37 x 0.55 in. (6.9 x 3.5 x 1.4 cm) |
Product Performance and Technical Specs - Fan Unit | |
Total Airflow (Fan Only) | 352 CFM |
Total Noise | 34 dBA |
Static Pressure | 394 Pa |
Voltage | 100-240V AC |
Frequency | 50/60Hz |
Max Power Draw | 61 W |
Average Power Usage | 35 W |
Current | 0.85 A |
Power Connector Type | US Plug (NEMA 1-15 Type-A) |
Operating Humidity | 35 to 85% RH |
Operating Temperature | 0 to 140°F |
Ingress Protection | IP 44 |
Fan Bearings | Dual Ball |
Mounting Positions | Horizontal or Vertical |
L10 Life Expectancy | 67,000 Hours |
Fan Quality Approvals | CE, RoHS |
Product and Mounting Dimensions - Carbon Filter | |
Duct Opening Size | 6" |
Total Dimensions | 15.94 x 8.93 in. (40.5 x 22.7 cm) |
Flange Length | 1.57 in. (4.0 cm) |
Product Performance and Technical Specs - Carbon Filter | |
Flange Material | Aluminum |
Flange Design | Reversible |
Mesh Material | Galvanized Steel |
Carbon Type | Australian Virgin RC412 |
Carbon Grade | 1200+ IAV |
Carbon Thickness | 38mm |
Maximum Airflow | 410 CFM |
Product Dimensions - Ducting | |
Ducting Size | 6 in. (15.2 cm) |
Length | 300 in. (25 ft) |
Product Performance and Technical Specs - Ducting | |
Outer Layer | PVC Thermoplastic |
Inner Material | Aluminum Foil |
Internal Structure | Spiral Steel-Wire |
