ADVANCE GROW TENT SYSTEM PRO 5X5, 6-PLANT KIT, WIFI-INTEGRATED CONTROLS TO AUTOMATE VENTILATION, CIRCULATION, FULL SPECTRUM LM301H EVO LED GROW LIGHT

ADVANCE GROW TENT SYSTEM PRO 5X5, 6-PLANT KIT, WIFI-INTEGRATED CONTROLS TO AUTOMATE VENTILATION, CIRCULATION, FULL SPECTRUM LM301H EVO LED GROW LIGHT

AC Infinity

Regular price $1,499.00 USD
Regular price Sale price $1,499.00 USD
Sale Sold out
  • An advance grow tent kit with smart controls and integrated components to start an indoor growing system.
  • Controller automates each fan and light with individual programs to dynamically adjust speed and brightness.
  • Connect your mobile device to our app via WiFi to automate and track your grow tent climate from anywhere.
  • EC inline fan 6”, oscillating clip fan 6”, and 730W full-spectrum bar grow light with Samsung LM301H EVO LEDs.
  • Premium 2000D Mylar tent 60”x60”x80”, Australian carbon filter, ducting, fabric pots, pruning snips, and more.

PRODUCT DESCRIPTION

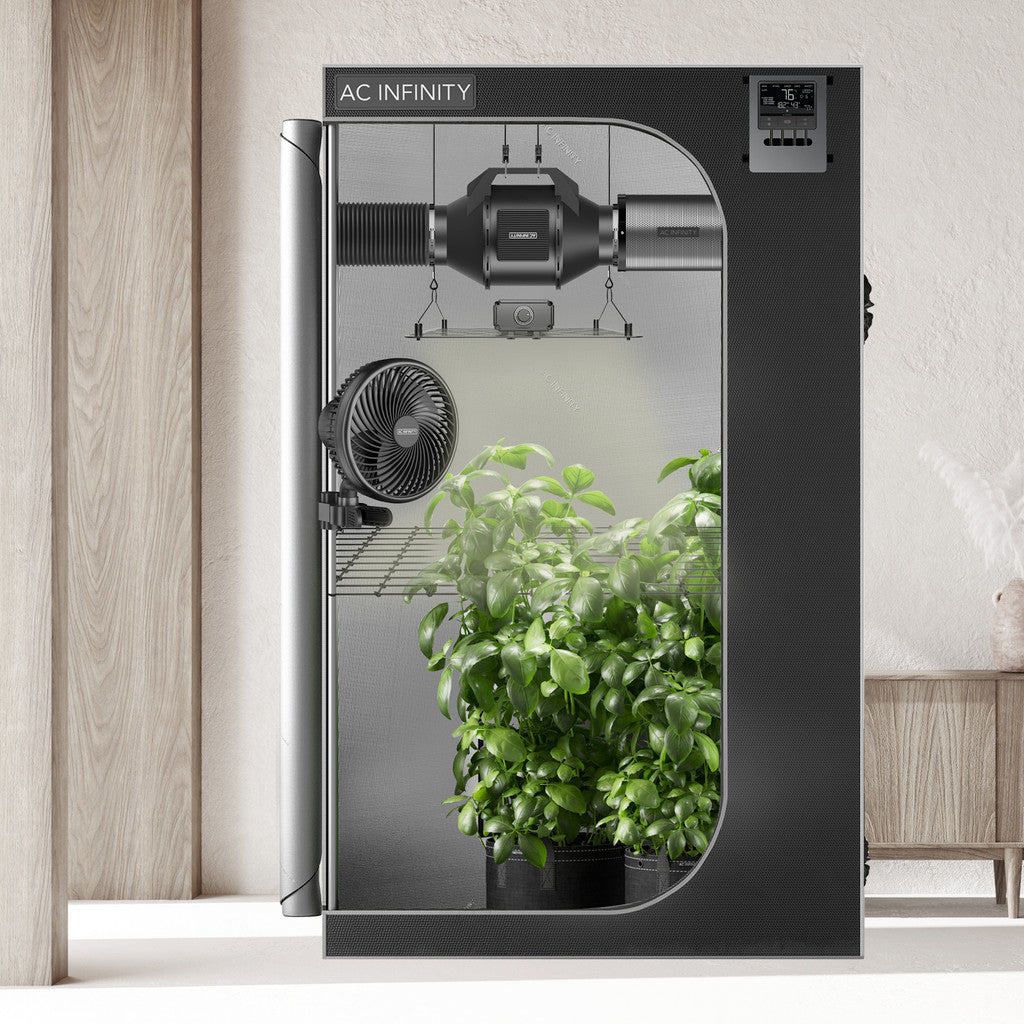

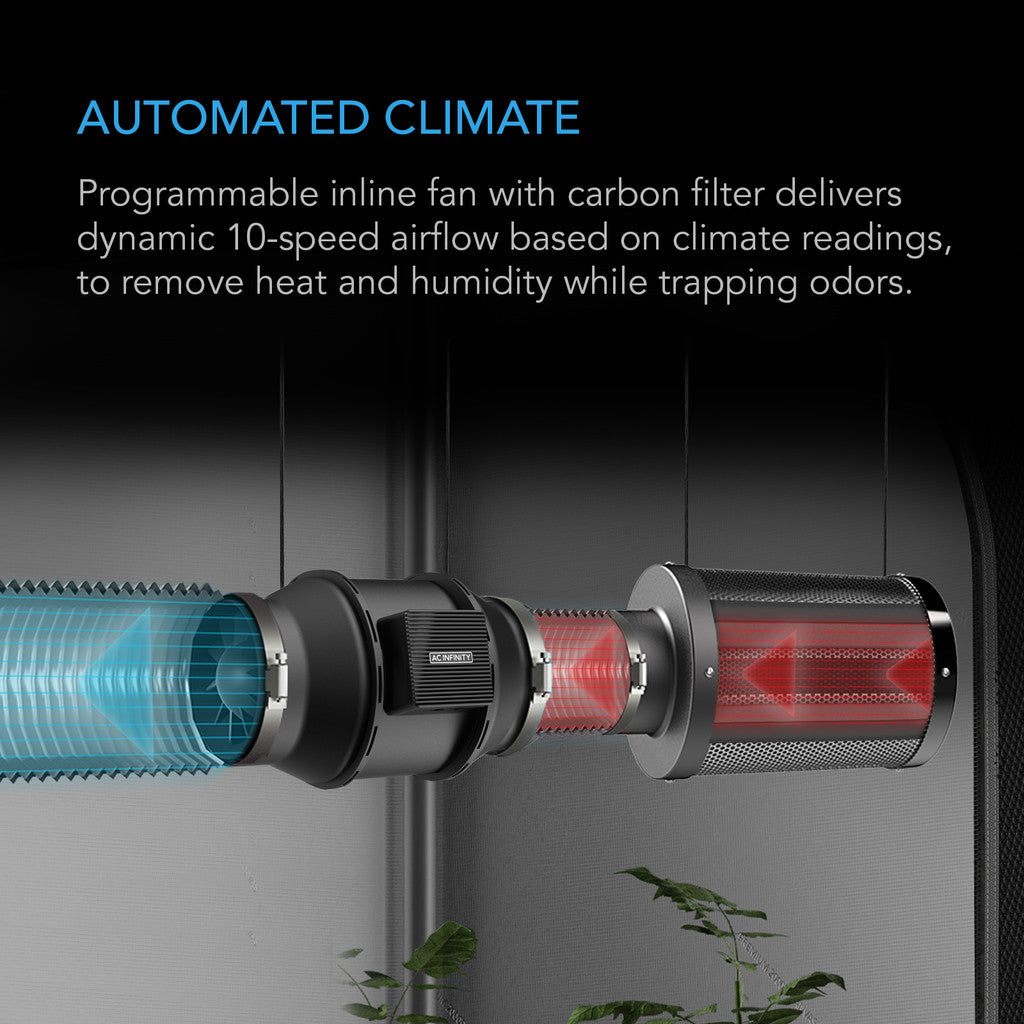

An advance grow tent system with intelligent controls to manage your grow environment and ensure ideal growing conditions for a successful harvest. The inline fan, carbon filter, and ducting manage your tent’s climate conditions by routing heat, humidity, and odor away from it. Air is circulated inside with the oscillating clip-on fan to provide light breezes to your plants. Algorithmically arranged LM301H EVO diodes on the grow light frame emit powerful LED lighting over wide coverage to simulate natural sunlight and optimize growth. These Samsung LEDs are the best in their class, delivering higher light intensity and greater efficiency per diode than LM301H, LM301B, Bridgelux 3030, and other popular LEDs. The devices are housed in a high-density oxford grow tent, featuring a sturdy steel frame and Mylar walls to create a climate-controlled grow space.

INTELLIGENT PROGRAMMING

Integrating these components is the CONTROLLER 69 PRO, engineered to provide each device with shared or independent programming. This central control unit can set dynamic programs to activate your grow devices in response to VPD (vapor pressure deficit) levels, in addition to temperature and humidity, to help you further dial into your ideal growing space. Timer, cycle, and schedule modes add custom on-demand activation for a variety of indoor growing uses. Securely connect to the AC Infinity app via WiFi to remotely access your indoor grow system from anywhere outside the boundaries of your home, unlocking advance programs, alerts, notifications, and historical charts.

COMPLETE KIT

This package assembles all the essential components to help you quickly start your indoor grow while eliminating the guesswork of purchasing them individually. The full grow tent kit will include the following:

  • CLOUDLAB 866 – Advance Grow Tent 60”x60”x80” (x1)
  • CONTROLLER 69 PRO – Grow Tent Controller (x1)
  • CLOUDLINE PRO 6 - Inline Fan 6" (x1)
  • IONFRAME EVO8 – Commercial Bar LED Grow Light 730W (x1)
  • CLOUDRAY S6 – Oscillating Circulation Clip Fan (x2)
  • Carbon Filter 6” (x1)
  • 6” Flexible Ducting, 8’ Long (x1)
  • Hanging Straps (x2)
  • Rope Clip Hangers (x2)
  • 6” Steel Clamps (x2)
  • 5’ Duct Tape (x1)
  • Hook and Loop Ties (x10)
  • 6’ UIS Male to Male Controller Cord (x1)
  • 6’ L-Shaped UIS Male to Male Controller Cord (x2)
  • 5-gallon Fabric Pots (x12)
  • Elastic Trellis Netting 5x5’ (x1)
  • Black Wire Twist Ties (x1)
  • Micro-tip Pruning Shears (x1)



 Product Identification
   Manufacturer    AC Infinity Inc.
   Product Name    Advance Grow System B55
   Product Model    AC-PKB55
   UPC Code    819137024038
   Product and Mounting Dimensions - Grow Tent
   Tent Dimensions    60" x 60" x 80" (152.4 x 152.4 x 203.2 cm)
   Duct Opening Sizes    4", 8"
   Viewing Window Size    11.81 x 11.81 in. (30.0 x 30.0 cm)
   Rear Intake Hole Size    5.90 x 13.77 in. (15.0 x 35.0 cm)
   Side Intake Hole Size    5.90 x 13.77 in. (15.0 x 35.0 cm)
   Mounting Strap Length    6.49 in. (16.5 cm)

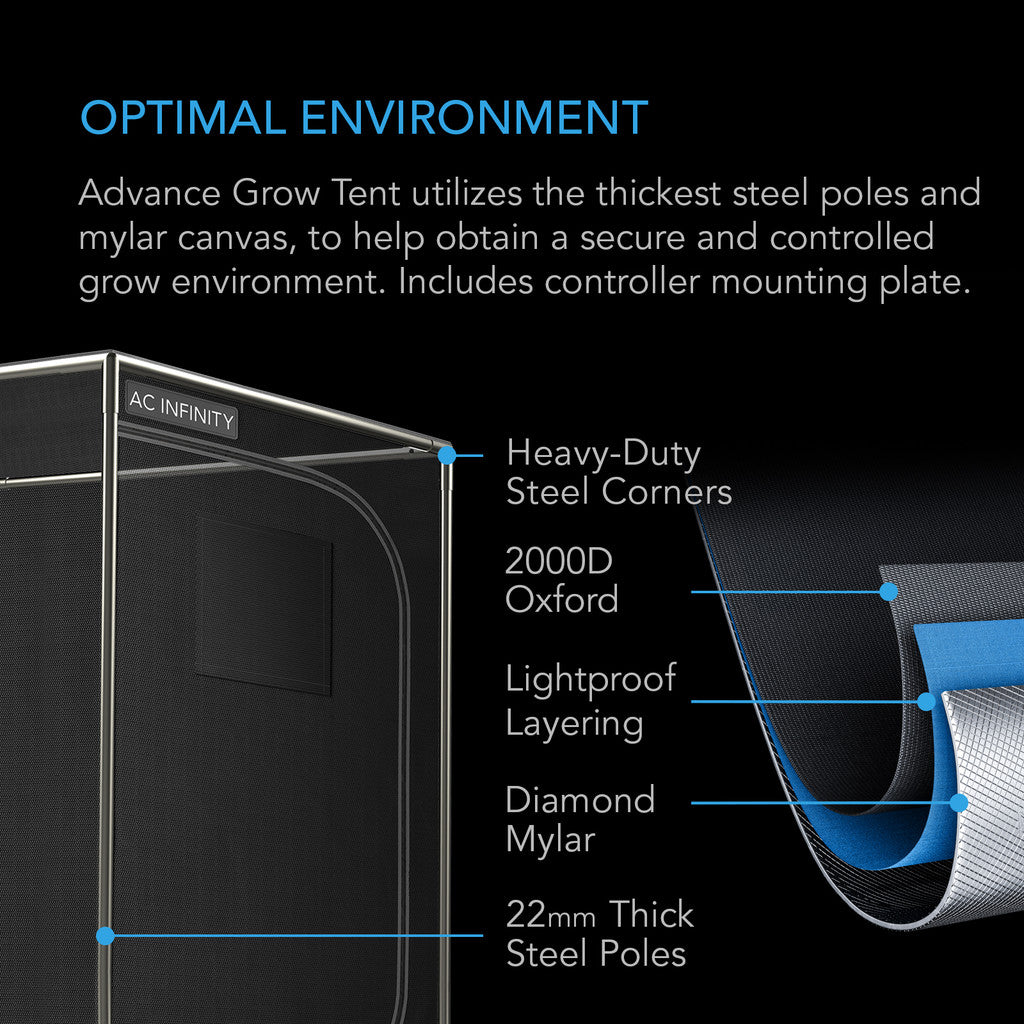

   Product Performance and Technical Specs - Grow Tent
   Outer Tent Material    Oxford
   Inner Tent Material    Mylar
   Pole Material    Steel
   Pole Thickness    22 mm
   Beam Weight Capacity    150 lbs.
   Plant Capacity    6
   Product and Mounting Dimensions - Inline Fan
   Duct Size    6"
   Total Dimensions    7.87 x 12.60 x 8.35 in. (21.2 x 32.0 x 20.0 cm)
   Mounting Hole-To-Hole Distance    3.15 x 2.36 in. (8.0 x 6.0 cm)
   Screw Hole Size    Ø 0.236 in. (Ø 0.6 cm)
   Cord Length to Controller    240 in. (20 feet)
   Cord Length to Plug    96 in. (8 feet)
   Performance and Technical Specs - Inline Fan
   Total Airflow    402 CFM
   Total Noise    32 dBA
   Static Pressure    503 Pa
   Voltage    100-240V AC
   Frequency    50/60Hz
   Max Power Draw    64 W
   Average Power Usage    38 W
   Current    1.67 A
   Power Connector Type    US Plug (NEMA 1-15 Type-A)
   Operating Humidity    35 to 85% RH
   Operating Temperature    32 to 140°F
   Ingress Protection    IP 44
   Fan Bearings    Dual Ball
   Mounting Positions    Horizontal or Vertical
   Life Expectancy    67,000 Hours
   Product and Mounting Dimensions - Clip Fan
   Impeller Size    6.5"
   Total Dimensions    8.74 x 10.47 in. (22.2 x 26.6 cm)
   Cord Length to Plug    96 in. (8 feet)
   Product Performance and Technical Specs - Clip Fan
   Maximum Airflow    315 CFM
   Total Noise    33 dBA
   Static Pressure    25 Pa
   Operating Voltage    100-240V AC
   Power    8 W
   Current    0.14 A
   Operating Humidity    35 to 85% RH
   Operating Temperature    32 to 140°F
   Waterproof Rating    IP-44
   Rotation Range    90°
   Tilt Angle    55°
   Oscillation    Automatic Oscillation
   Fan Bearings    Dual Ball Bearing
   Mounting Positions    Horizontal or Vertical
   Life Expectancy    67,000 Hours
   Product and Mounting Dimensions - Controller
   Total Dimensions    5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm)
   Hole to Hole Distance    4.71 x 2.64 in. (12.0 x 6.7 cm)
   Screw Hole Size    Ø 0.119 in (Ø 0.3 cm)
   Display Size    3.5 x 1.4 in. (9 x 3.5 cm)
   Sensor Probe Length    144 in. (12 feet)
   Product Performance and Technical Specs - Controller
   Maximum Devices Controlled    4
   Max Power Supported    10 W
   Programming Temperatures    32 to 140°F
   Operating Voltage    9 to 18V
   Power    1 W
   Current    0.1 A
   Power Input    12V from Device
   Operating Humidity    35 to 85% RH
   Product and Mounting Dimensions - LED Grow Light
   Light Dimensions    44.09 x 44.48 x 3.38 in. (112.0 x 113.0 x 8.6 cm)
   Product Performance and Technical Specs - LED Grow Light
   Coverage    5 x 5 ft.
   Diodes    Samsung LM301H EVO
   Spectrum    395nm, 660nm, 3000K, 5000K
   Chip Count (Total)    2688
   Chip Count (EVO 3000K)    1720
   Chip Count (EVO 5000K)    864
   Chip Count (Seoul 395 nm)    8
   Chip Count (OSRAM 660 nm)    96
   LED Driver    SOSEN-320W
   Efficiency (Single Diode)    3.14 µmol/J
   PPFD    1408 PPFD
   Wattage    730 W
   Voltage    100-277V AC
   Frequency    50/60 Hz
   Controller    Schedule Controller
   Power Connector Type    US Plug (NEMA 1-15 Type-A)
   Operating Humidity    35 to 85% RH
   Operating Temperature    32 to 140°F
   Waterproof Rating    IP-65
   Life Expectancy    50,000 Hours
   Product and Mounting Dimensions - Carbon Filter
   Duct Opening Size    6"
   Total Dimensions    15.94 x 8.93 in. (40.5 x 22.7 cm)
   Flange Length    1.57 in. (4.0 cm)
   Product Performance and Technical Specs - Carbon Filter
   Flange Material    Aluminum
   Flange Design    Reversible
   Mesh Material    Galvanized Steel
   Carbon Type    Australian Virgin RC412
   Carbon Grade    1200+ IAV
   Carbon Thickness    38mm
   Maximum Airflow    410 CFM
   Product Dimensions - Ducting
   Ducting Size    6 in. (15.2 cm)
   Length    96 in. (8 ft)
   Product Performance and Technical Specs - Ducting
   Outer Layer    PVC Thermoplastic
   Inner Material    Aluminum Foil
   Internal Structure    Spiral Steel-Wire
